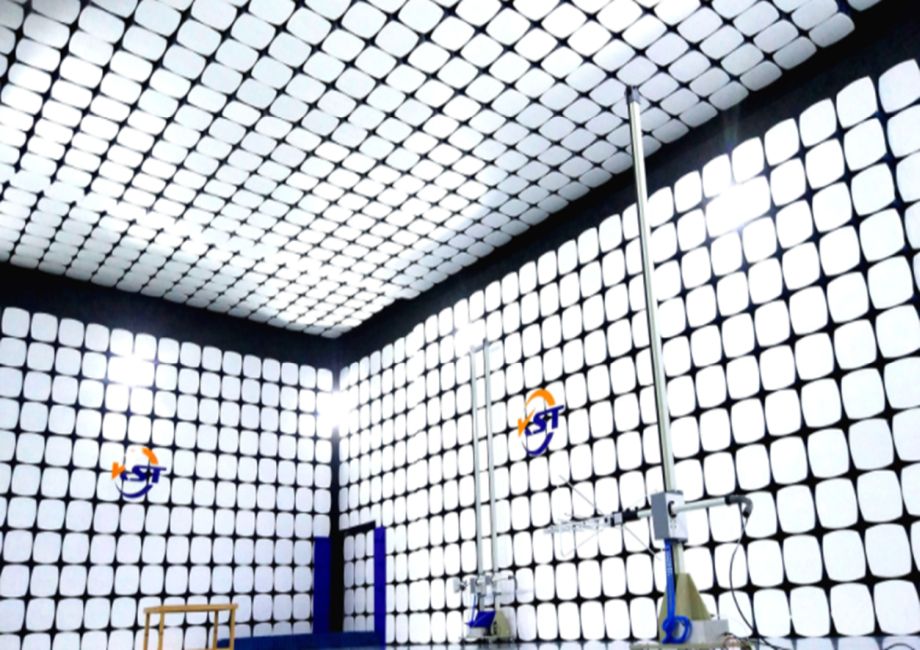

10m Semi-Anechoic Chamber

Test Items: Radiated Emission

Frequency Range：9KHz-18GHz

Test Equipment: EMI Test Receiver (R & S ESR7), Power amplifier，Broad-band hom Antenna，Log-periodic Antenna

Shielding Effectiveness: According to EN 50147-1, GB/T 12190

Normalized Site Attenuation: According to CISPR 16-1-4, 2, CISPR 22, ANSI C63.4, SVSWR ＜ 6.0dB

Test Products: IT and ITE products, audio and video products, multimedia equipments household electric appliances and tools products, lighting products, ISM products, automotive electronics, etc

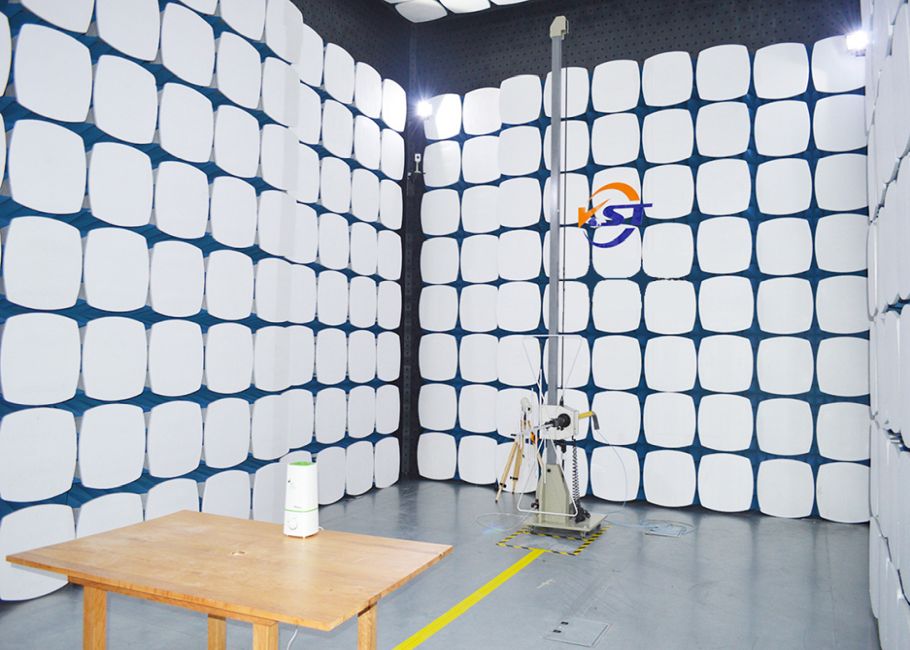

3M Semi-Anechoic Chamber

Test Items: Radiated Emission, BCI，R/S

Frequency Range：9KHz-18GHz

Test Equipment: EMI Test Receiver (R & S ESR3), Power meter（R&S NRP2，NRP-Z91），Signal generator（R&S SMC100A），Log-periodic Antenna，Broad-band hom Antenna，Power amplifier

Shielding Effectiveness: According to EN 50147-1, GB/T 12190

Test Products: ITE products, audio and video products, household electric appliances and tools products, lighting products, ISM products, radio frequency devices, automotive electronics, etc.

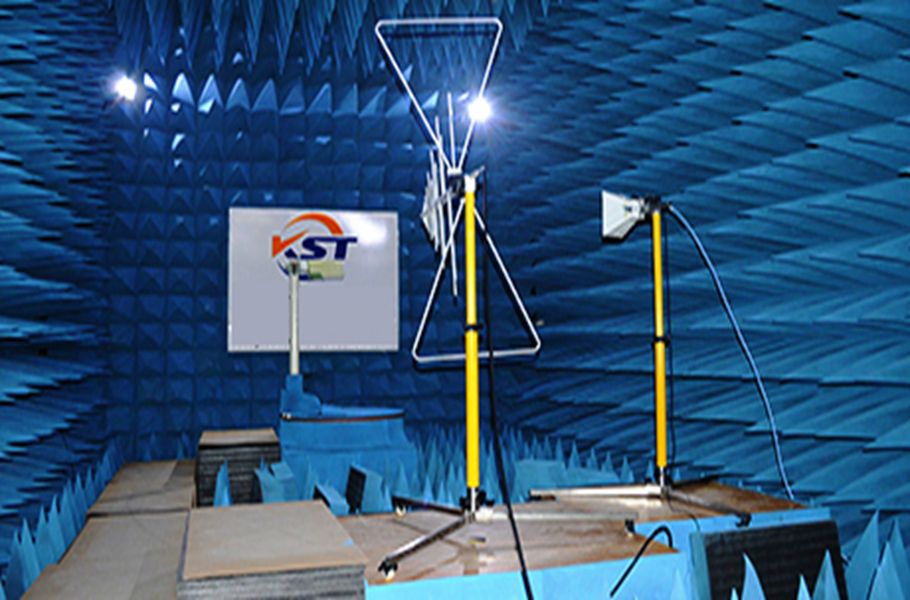

RF Fully-Anechoic Chamber

Test Items: Spurious

Frequency Range：9KHz-26.5GHz

Test Equipment: R&S FSV 30, CBT, CMW500,Amplifier, Horn antenna，Log-periodic Antenna

Frequency Range：9KHz-26.5GHz

Test Standard：FCC SubPart 15、RSS 210/RSS 247、ETSI EN 301489、ETSI EN 300220、ETSI EN 300330、ETSI EN 300328、ETSI EN 300440、ETSI EN 301511、ETSI EN 301908

Test Products: Mobile phone 2G / 3G / 4G, 5GHz WLAN, WiFi, BT, RFID, interphone, unmanned aerial vehicle, wireless mouse/ keyboard, remote control, wireless audio, wireless microphones, etc.

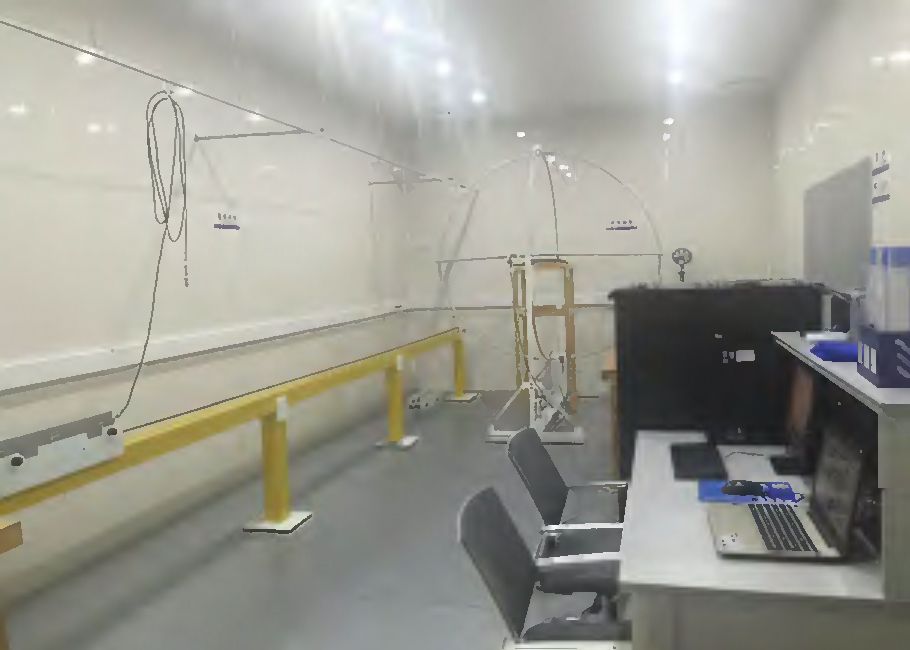

843 Shielded Room

Test Items：Conducted Emission，Disturbance Power，Magnetic Emission ,Insertion Loss，Click，Harmonic and Flicker, EMF

Frequency Range：9kHz-300MHz

Test Equipment: R & S Test Receiver ESR3, ISN, LISN，Digital Discontinuous Analyzer, Absorbing Clamp, Guiderail,Triple Loop Antenna，ELT-400，VDH-210

Test Standards: CISPR 11, CISPR 13, CISPR 14-1, CISPR 15, CISPR 22, CISPR 32,FCC PART 15, FCC PART 18 ...

Test Products: ITE products, audio and video products, household electric appliances and tools products, lighting products, ISM products, radio frequency devices, automotive electronics, etc.
